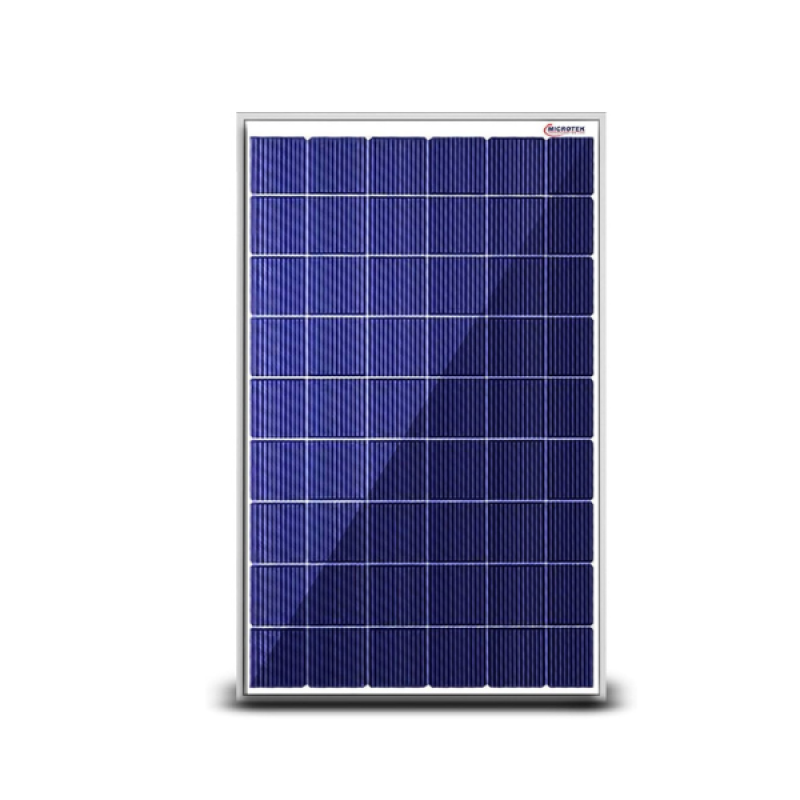

Microtek polycrystalline 330watt/24V panel

₹13,200.00 -46% Off ₹24,850.00

Sold By: Maxi Batteries

Warranty: 25 year warranty
Capacity: 330 watt panel
Voltage:24volt
Type: polycrystalline panel
Installation:Fees based on customer requirement
In stock

KEY FEATURES

  • Positive Power Tolerance Modules.
  • Highly Classified A-Grade Solar Cells for Lesser Degradation and High Energy.
  • Micro Crack Free Panels-100% EL Tested Before and After Lamination.
  • High Conversion Efficiency based on Leading Innovative Photo Voltaic Technologies.
  • PID Free Modules with Long Term Reliability.
  • Anti-Reflective Coating Glass Available.
  • Advance IP67/IP68 Junction Box for long-term weather endurance.
  • RFID Tag Available.
  • Sustain Heavy Wind and Snow Loads (2400Pa and 5400Pa).
  • Excellent Performance in Low Light.
  • Salt Mist, Ammonia, Blowing Sand and Hail Resistant.
  • Ideal for Off-Grid as well as On-Grid Applications.
  • IP67 rated MC4 Compatible Connectors.
  • EVA Encapsulation and Anti Reflection Coating for better Module Protection

Technical Info

Nominal Maximum Power (Pm)



330Watts/24V

Open Circuit Voltage (Voc)

46.00V

Short Circuit Current (Isc)

9.20A

Voltage at Maximum Power (Vmp)

37.10V

Current at Maximum Power (Imp)

8.90A

Maximum System Voltage

1000V



General Info

Length x Width x Thickness (LxWxT) - mm

1970x991x40

Mounting Holes Pitch (Y) – mm

951

Mounting Holes Pitch (X) – mm

978/1500

Solar Cells per Module (Units) / Arrangement

72 / (12 x 6)

 Solar Cell Type

Multi Crystalline Silicon

Front Cover (Material / Thickness)

Tempered & Low Iron Glass / 3.2mm

Encapsulate

Ethylene Vinyl Acetate

Frame Material

Anodized Aluminum Alloy

Junction Box

IP-67, 4-Rail, 3 Diodes, 1 Mtr 4 Sq mm Wire With MC4 Connector
